API 17K

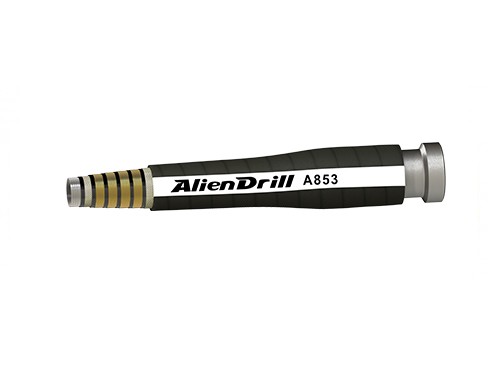

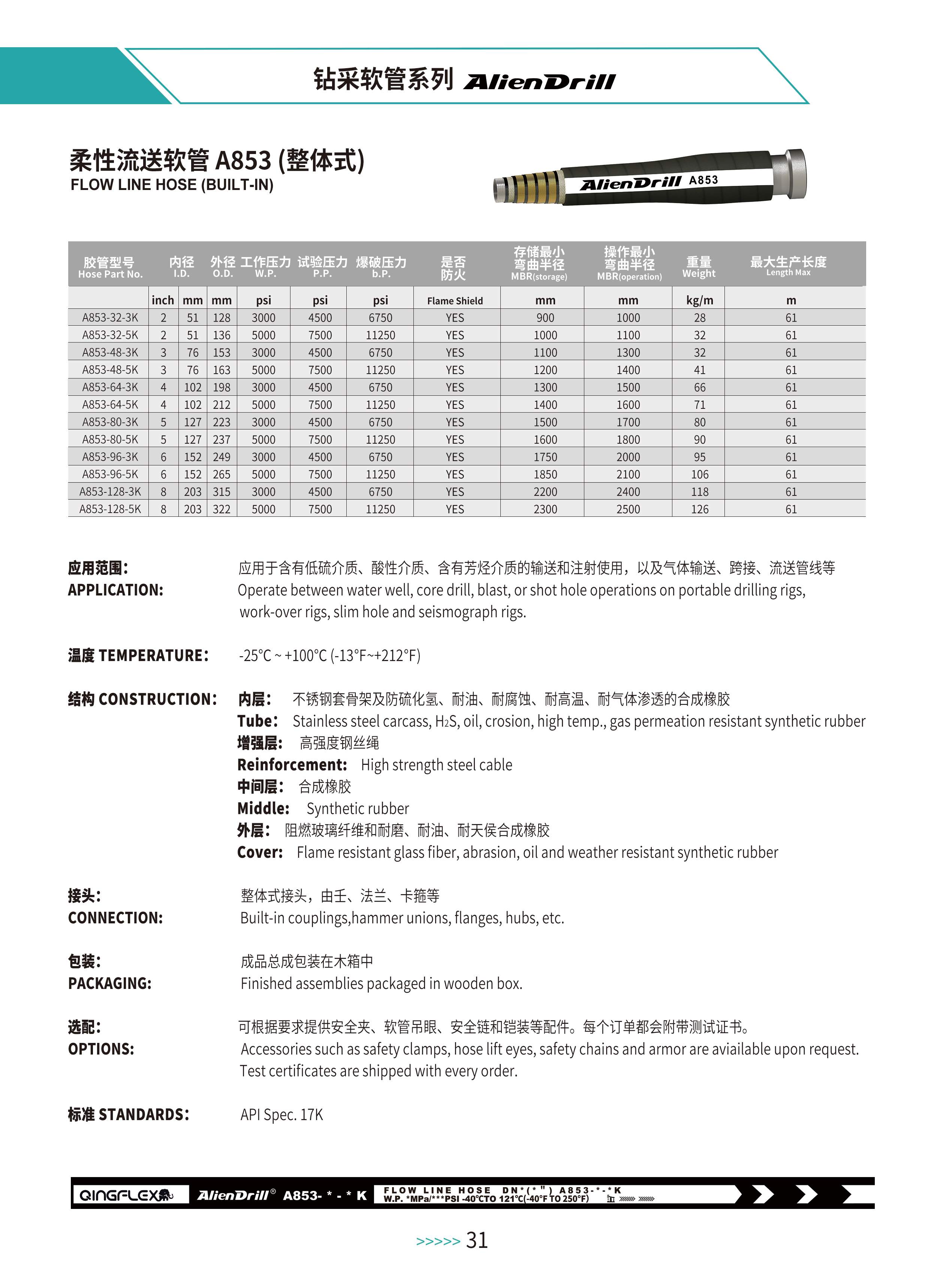

FLOW LINE Hose (Built-in)A853
APPLICATION: Operate between water well, core drill, blast, or shot hole operations on portable drilling rigs,
work-over rigs, slim hole and seismograph rigs.
TEMPERATURE： -25℃ ~ +100℃ (-13℉~+212℉)
CONSTRUCTION：
Tube： Stainless steel carcass, H2S, oil, crosion, high temp., gas permeation resistant synthetic rubber
Reinforcement: High strength steel cable
Middle: Synthetic rubber
Cover: Flame resistant glass fiber, abrasion, oil and weather resistant synthetic rubber
work-over rigs, slim hole and seismograph rigs.
TEMPERATURE： -25℃ ~ +100℃ (-13℉~+212℉)
CONSTRUCTION：
Tube： Stainless steel carcass, H2S, oil, crosion, high temp., gas permeation resistant synthetic rubber
Reinforcement: High strength steel cable
Middle: Synthetic rubber
Cover: Flame resistant glass fiber, abrasion, oil and weather resistant synthetic rubber
STANDARDS: API Spec. 17K
Product Details
APPLICATION: Operate between water well, core drill, blast, or shot hole operations on portable drilling rigs,
work-over rigs, slim hole and seismograph rigs.
TEMPERATURE： -25℃ ~ +100℃ (-13℉~+212℉)
CONSTRUCTION：
Tube： Stainless steel carcass, H2S, oil, crosion, high temp., gas permeation resistant synthetic rubber
Reinforcement: High strength steel cable
Middle: Synthetic rubber
Cover: Flame resistant glass fiber, abrasion, oil and weather resistant synthetic rubber
work-over rigs, slim hole and seismograph rigs.
TEMPERATURE： -25℃ ~ +100℃ (-13℉~+212℉)
CONSTRUCTION：
Tube： Stainless steel carcass, H2S, oil, crosion, high temp., gas permeation resistant synthetic rubber
Reinforcement: High strength steel cable
Middle: Synthetic rubber
Cover: Flame resistant glass fiber, abrasion, oil and weather resistant synthetic rubber
STANDARDS: API Spec. 17K
We can produce rubber acid Frac Hose (acid Frac Hose, Frac Hose, acid frack hose) to instead of the iron pipe, please check A801F item.
acid fracturing hose, acid Frac Hose, Frac Hose, frack hose, acid frack hose.
API 7K, API 16C, mud and cement hose, rotary drilling and vibrator hose, choke and kill hose, BOP control hose, slim hole rotary hose, Kelly hose, flange, hammer union.
